114 dB, 192 kHz Stereo A/D Converter

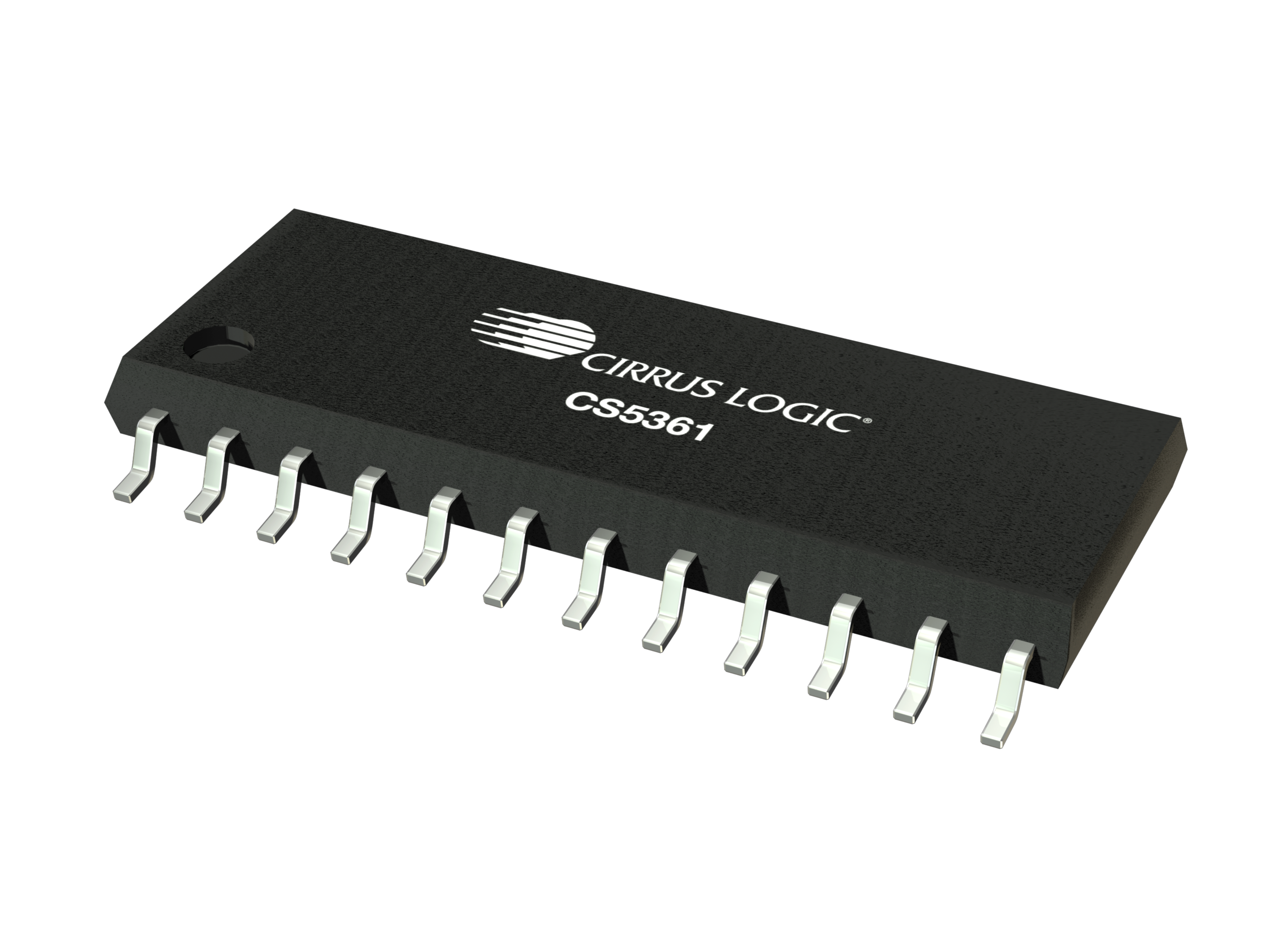

The CS5361 is a complete audio A/D converter (ADC) for digital audio systems. It performs sampling, A/D conversion and anti-alias filtering, generating 24-bit values for both left and right inputs in serial form at sample rates up to 192 kHz per channel. The CS5361 uses a fifth-order, multibit Delta Sigma modulator followed by digital filtering and decimation, which removes the need for an external anti-alias filter. The ADC uses a differential architecture, which provides excellent noise rejection. The CS5361 is ideal for audio systems requiring wide dynamic range, negligible distortion and low noise, such as audio/video receivers, DVD-R, digital mixing consoles, effects processors and automotive systems.

Cirrus Rocks® Cirrus® Engineered to Rock® Innovation that Rocks®


  • 114 dB dynamic range
  • -105 dB THD+N
  • Low-latency digital filter
  • Supports main or secondary mode operation
  • Pin compatible with the CS5381
  • Functionally compatible with CS5351

Parametric Specifications

Channels (Inputs) 2
Resolution (bits) 24
Dynamic Range (dB) 114
THD+N (dB) -105
Sample Rate (kHz) 192
Analog Inputs/Outputs Differential
Analog Power Supply (V) 5
Digital Power Supply (V) 3.3-5
Logic Power Supply (V) 2.5-5
Operational Power Consumption (mW) 135-243
Package 24 SOIC;

Software and Tools

CS5361 IBIS Model

Oct 1, 2006, Rev 1.0 : 143 Kb
