High performance stereo audio codec

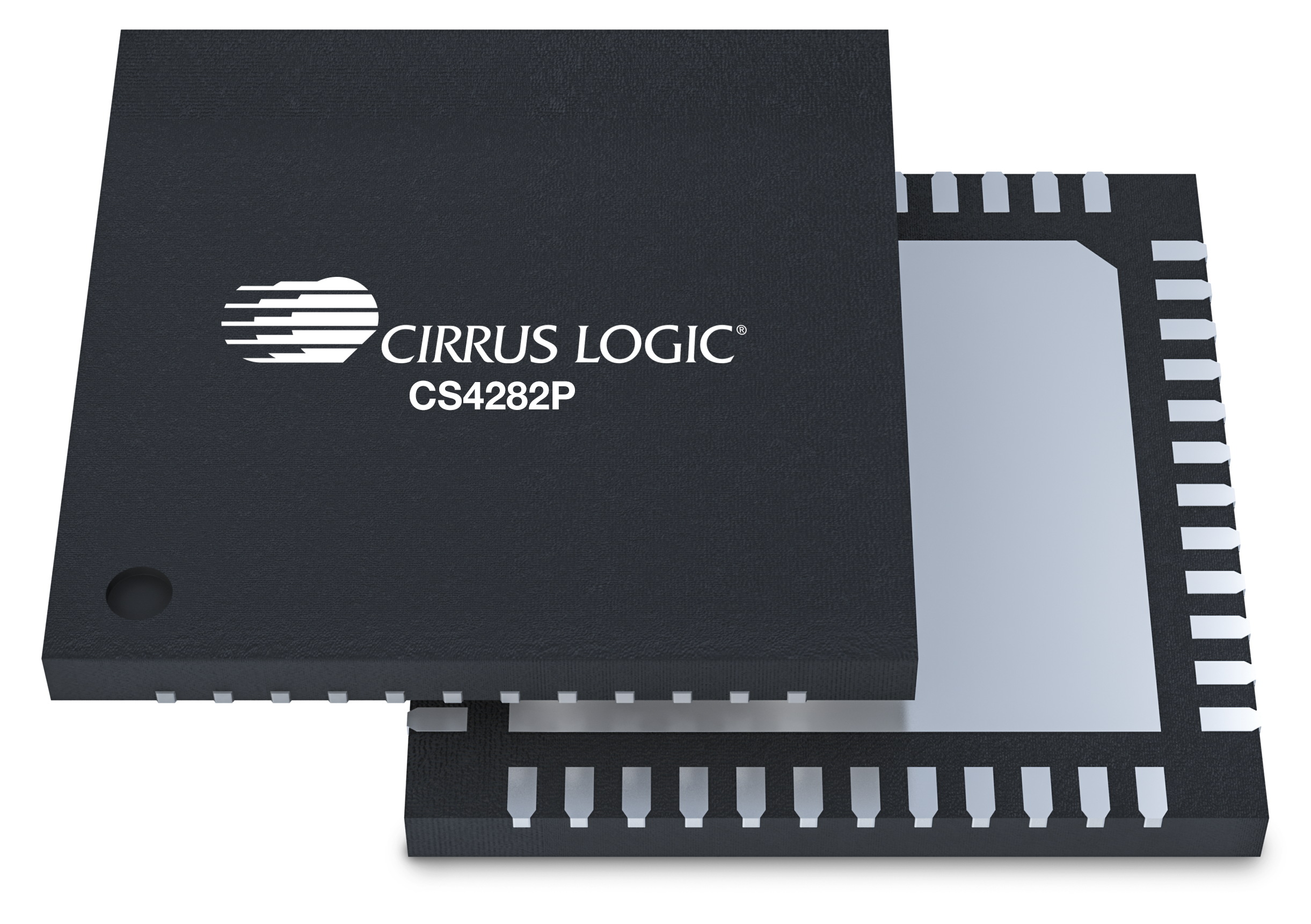

The CS4282P is a 32-bit audio codec integrating a 2-channel ADC and a 2 channel-DAC, delivering 123 dB SNR on the ADC and 128 dB SNR on the DAC for high dynamic range audio capture and playback. The integrated ADC hybrid gain control reduces the external preamplifier circuitry, lowering BOM costs and simplifying audio system design compared to discrete ADC implementations. The integrated DAC includes proprietary adaptive filtering that maintains clarity, tonal accuracy, and consistent frequency response across a wide sample rate range from 44.1 kHz to 768 kHz. By combining high resolution ADC and DAC functions in a single audio codec, the CS4282P enables reduced component count, lower system cost, and smaller board area, while achieving full performance without requiring specialized low noise power supplies.
Learn more about Cirrus Logic's high performance audio solutions.
CIRRUS ROCKS® CIRRUS® ENGINEERED TO ROCK® INNOVATION THAT ROCKS®
Technologies
Features
- High performance stereo codec
- Differential analog inputs/outputs
- High-resolution 32-bit digital architecture
- Low-latency digital filters and digital volume control
- PLL supports range of external system-clock references
- Synchronous operation across multiple devices
- Audio serial port (ASP) sample rates up to 768 kHz
- I2S, left-justified, and TDM data formats
- DSD up to 512xfs
- Hybrid Gain Control
- Hardware and software control modes
- Hardware control with no host processor required
- I2C control port up to 1 MHz
- SPI control port up to 24 MHz
- Single-supply operation at 3.3 V
- Support for 1.8 V–3.3 V digital input/output
Parametric Specifications
| Channels In | 2 |
| Channels Out | 2 |
| DAC Dynamic Range (dB) | 129 |
| ADC Dynamic Range (dB) | 123 |
| DAC THD+N (dB) | -115 |
| ADC THD+N (dB) | -110 |
| Analog Power Supply (V) | 3.3 |
| Digital Power Supply (V) | 3.3 |
| Logic Power Supply (V) | 1.8-3.3 |
| Package | 48-pin QFN |
Technical Documents
CDB-PROAUDIO User Guide
May 1, 2026, DS1352R4 : 4.0 MBCS530xP Hybrid Gain Control
Mar 16, 2026, AN0596R2 : 1.4 MBCS4282P Product Data Sheet
Aug 1, 2025, DS1318F1 : 5.5 MbCS430xx Output Buffer/Filter Circuits
Aug 1, 2025, AN0679R1 : 297.7 KBDC4282P Codec Schematic and Layout
Aug 1, 2025 : 7.4 MbCS530x Input Buffer/Filter Circuits
Jul 1, 2025, AN0556R1 : 383.6 KBCDB-DC4282P-CODEC User Guide
Jul 1, 2025, DS1395DB1 : 3.8 MbCS4282P Product Bulletin
Jun 25, 2024 : 8.3 MbPress Releases
2024
Jun 25
Cirrus Logic Unveils Its Latest Additions to its Family of Professional Audio Converters
Launch of Digital-to-Analog Converters and CODEC Products Engineered for Supreme Audio Fidelity Tailored for Musicians, Live Entertainers, and Recording Engineers
Selection Guidelines
The CS4282P should be selected when:
- Designing a system that requires a high SNR stereo ADC and DAC.
- Design resources are limited.
- Both audio input (ADC) and audio output (DAC) channels are processed on the same board.
- A symmetric channel count is required (2-channel audio ADC and 2-channel audio DAC, 2-in / 2-out audio codec).
- Synchronization multiple audio output channels is required.
- You would like to achieve multiple distinct audio signatures from a single DAC/ADC, utilizing selectable digital filters without hardware changes.
- Minimizing audio pop and/or click is critical.
The CS4282P should not be selected when:
- Audio ADC and audio DAC functions must be separated across different boards or system partitions. In this case the CS5302P (audio ADC) and CS4302P (audio DAC) should be considered.
- There number of audio inputs does not match the number of audio outputs. In this case the CS530xP (ADC) and CS430xP (DAC) should be considered.
- An integrated headphone or lineout driver is required. In this case the CS43131 should be considered.
