High performance 8-channel digital-to-analog converter

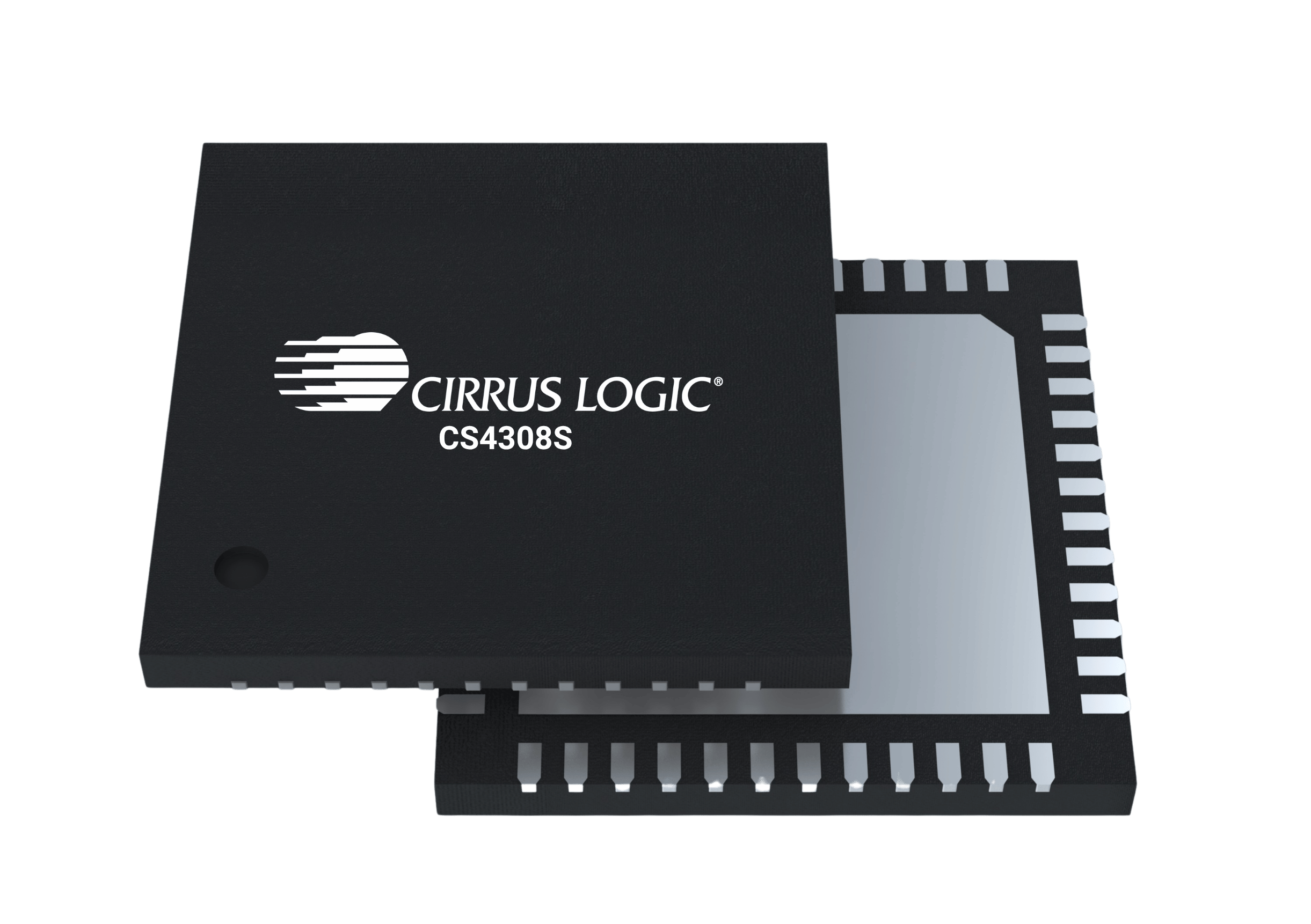

The Cirrus Logic CS4308S is part of a new series of pro audio converters aimed at providing the most transparent audio conversion. This transparency allows manufacturers to customize their end products. The CS4308S is a high-performance, 32-bit resolution 8-channel DAC. The device supports differential analog outputs and 32-bit digital input via the audio serial port (ASP) at sample rates up to 768 kHz. The CS4308S uses a proprietary analog FIR architecture to reduce out-of-band noise and minimize the external component requirements. This provides a dynamic range of 118 dB and THD+N below -110 dB, all within a 7 mW/ch power budget. The device can be powered from a single rail and controlled by either hardware pins, I2C or SPI, making the devices both flexible and easy to integrate. This makes both the CS4308S ideal for digital mixers, USB audio interfaces, home audio and audio video receivers, plus musical instruments such as synthesizers, DJ mixers and amplifiers.
Learn more about Cirrus Logic's high performance audio solutions.
INNOVATION THAT ROCKS® ENGINEERED TO ROCK® CIRRUS® CIRRUS ROCKS®
Technologies
Features
- High-performance 8-channel DAC
- Differential analog outputs
- High-resolution 32-bit digital architecture
- Low-latency digital filters and digital volume control
- PLL supports range of external system-clock references
- Synchronous operation across multiple devices
- Audio serial port (ASP) sample rates up to 768 kHz
- I2S, left-justified, and TDM data formats
- DSD up to 512xfs
- Hardware control with no host processor required
- I2C control port up to 1 MHz
- SPI control port up to 24 MHz
- Support for 1.8 V–3.3 V digital input/output
Parametric Specifications
| Channel(s) Out | 8 |
| Resolution (bits) | 32 |
| Dynamic Range (dB) | 118 |
| THD+N (dB) | -110 |
| Sample Rate (kHz) | 768 |
| Analog Power Supply (V) | 3.3 |
| Digital Power Supply (V) | 3.3 |
| Logic Power Supply (V) | 1.8-3.3 |
| Output Level (Vrms) | 2 |
| Package | 48-pin QFN |
