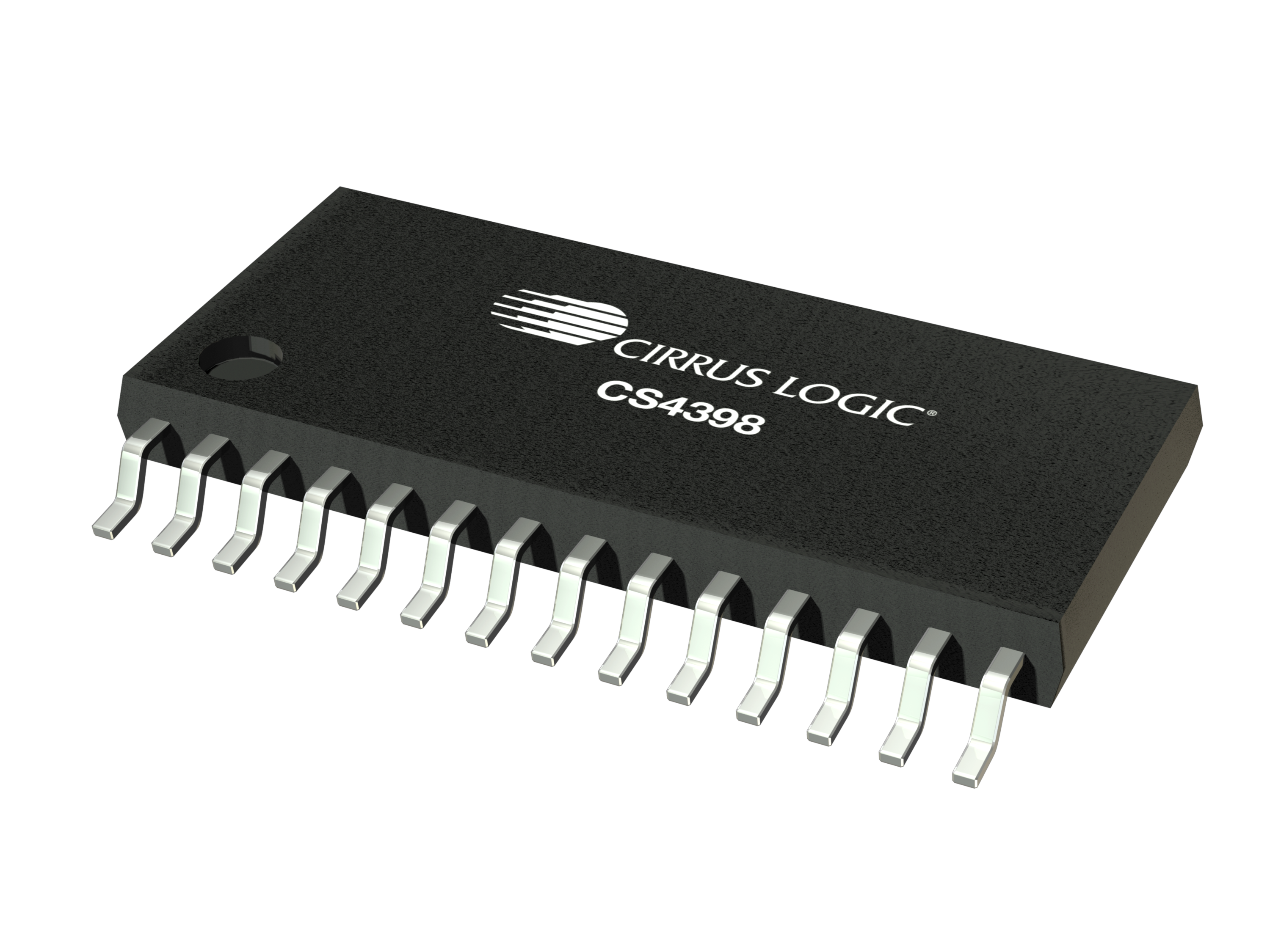

120 dB, 24-Bit, 192 kHz Stereo D/A Converter with DSD Support
The CS4398 is a low power, 120 dB stereo digital/analog converter (DAC) featuring digital de-emphasis, half dB step-size volume control, ATAPI channel mixing, and selectable fast and slow roll off digital interpolation filters. This stage is followed by an over sampled multi-bit Delta Sigma modulator, which includes mismatch shaping technology that eliminates distortion due to capacitor mismatch, and a multi-element switched capacitor stage and low-pass filter with differential analog outputs. A Direct Stream Digital® (DSD) processor allows for volume control and 50 kHz on-chip filtering without an intermediate decimation stage, plus an optional path for direct DSD conversion by directly using the multi-element switched capacitor array. The IC accepts DSD audio and 32 kHz to 200 kHz data sample rates, has selectable digital filters and delivers excellent sound quality.
CIRRUS ROCKS® CIRRUS® ENGINEERED TO ROCK® INNOVATION THAT ROCKS®
Technology
Features
- Low-latency digital filter
- Direct Stream Digital mode (SACD)
- Low-clock-jitter sensitivity
- Differential analog outputs
- Control output for external muting
Parametric Specifications
| Channel(s) Out | 2 |
| Resolution (bits) | 24 |
| Dynamic Range (dB) | 120 |
| THD+N (dB) | -107 |
| Sample Rate (kHz) | 30-216 |
| Analog Power Supply (V) | 5 |
| Digital Power Supply (V) | 3.3-5 |
| Logic Power Supply (V) | 1.8-5.0 |
| Operational Power Consumption (mW) | |
| Output Level (Vrms) | 2.3 |
| Package | 28 TSSOP |
