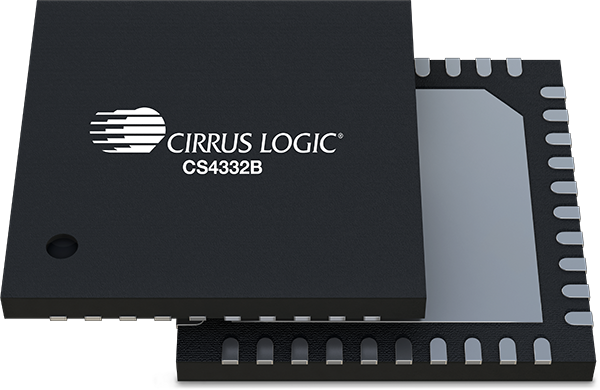

High performance 2-channel digital-to-analog converter

The CS4332B is part of a new series of pro audio converters aimed at giving cost-effective transparent audio conversion. All within one device that is easy to use and provides system level cost savings. The CS4332B is a high performance, 32-bit resolution, two-channel DAC. The CS4332B supports differential analog outputs and 32-bit digital input via the audio serial port (ASP) at sample rates up to 384 kHz. The voltage-output CS4332B incorporates a proprietary analog FIR architecture to reduce out-of-band noise and minimize the external component requirements. This provides a dynamic range of over 110 dB and THD+N below -100 dB. The device can be powered from a single rail and controlled by either hardware pins, I²C or SPI, making it both flexible and easy to integrate. This, together with Cirrus’s advanced digital filters, makes the CS4332B ideal for digital mixing consoles, DAW interfaces, effects processors, musical instruments and audio/video receivers.

Learn more about Cirrus Logic's high performance audio solutions.

CIRRUS ROCKS^® CIRRUS^® ENGINEERED TO ROCK^® INNOVATION THAT ROCKS^®

Technologies

Audio D/A Converters

Features

• High performance two-channel DAC
  • Differential analog architecture
  • High-resolution 32-bit digital architecture
  • Low-latency digital filters and digital volume control
• Crystal oscillator interface
• Sample timing alignment across multiple devices
• Audio serial port (ASP) sample rates up to 384 kHz
  • I²S, left-justified, and TDM data formats
• Hardware and software control modes
  • Hardware control with no host processor required
  • I²C control port up to 1 MHz
  • SPI control port up to 24 MHz
• Single-supply operation at 3.3 V
  • Support for 1.8 V–3.3 V digital input/output

Parametric Specifications

Channel(s) Out	2
Resolution (bits)	32
Dynamic Range (dB)	110
THD+N (dB)	-100
Sample Rate (kHz)	384
Analog Power Supply (V)	3.3
Digital Power Supply (V)	3.3
Logic Power Supply (V)	1.8-3.3
Package	40-pin QFN
